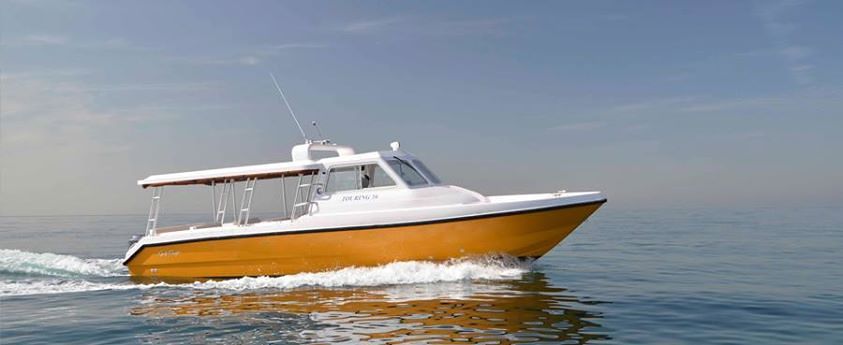

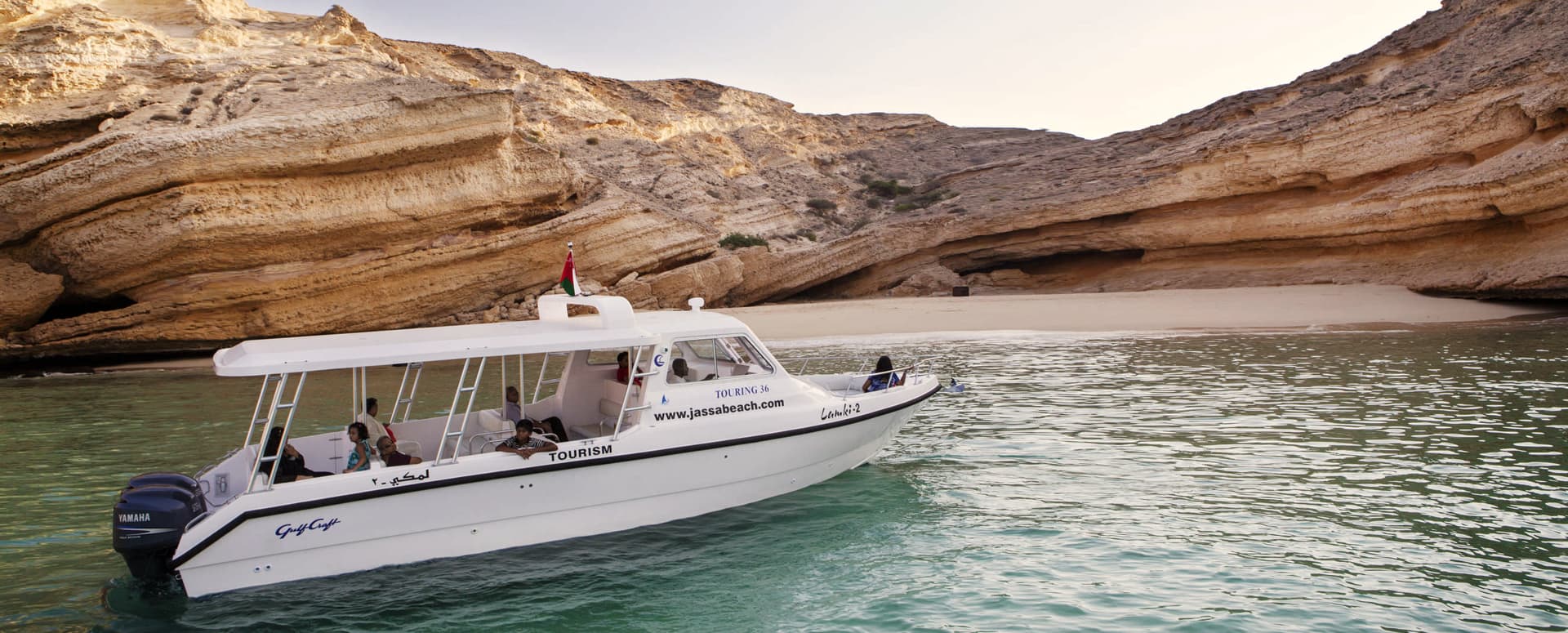

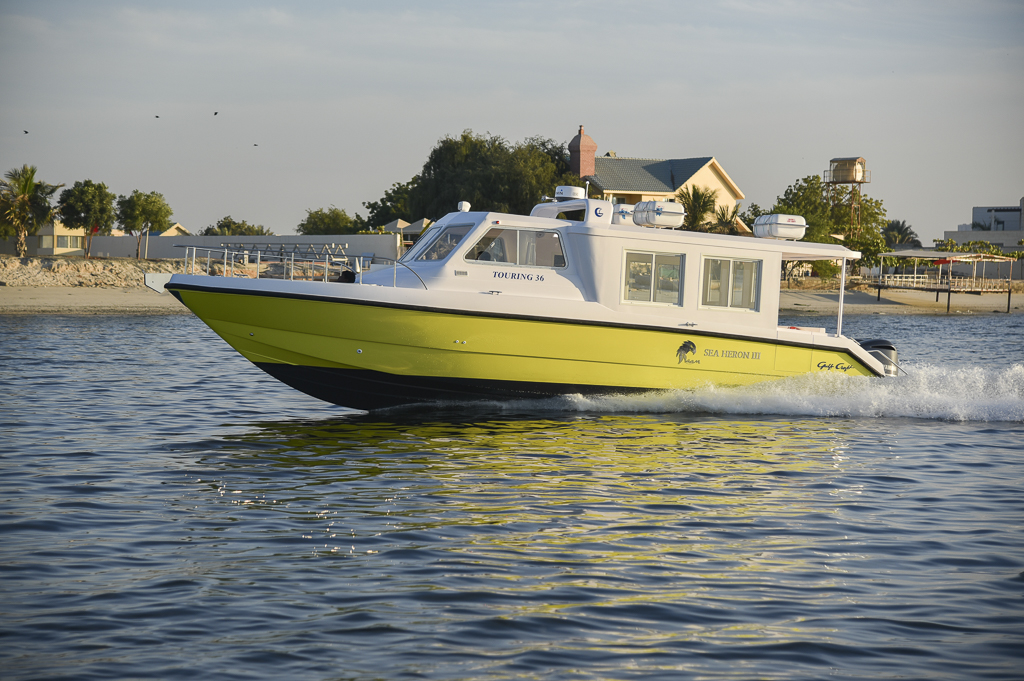

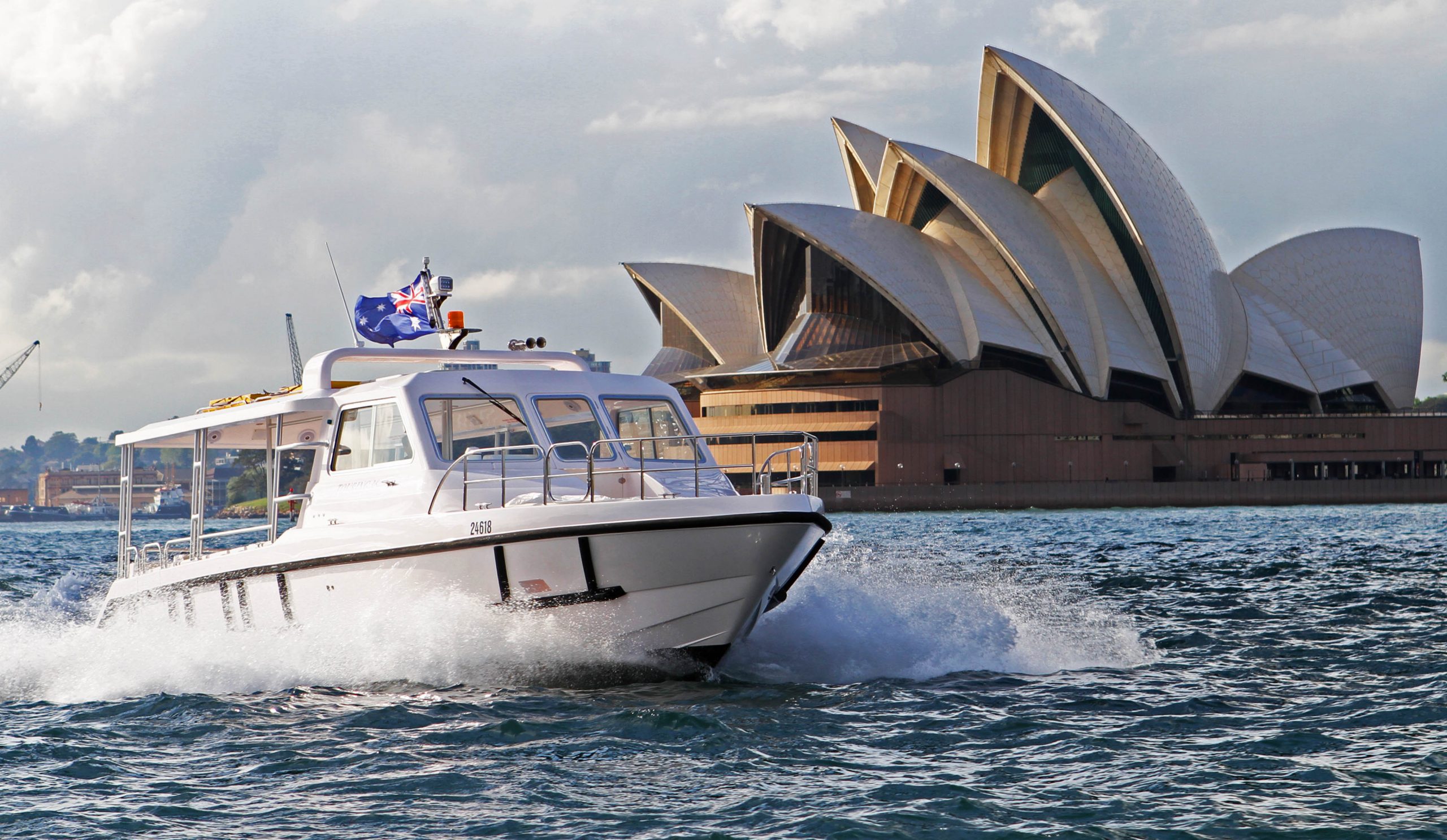

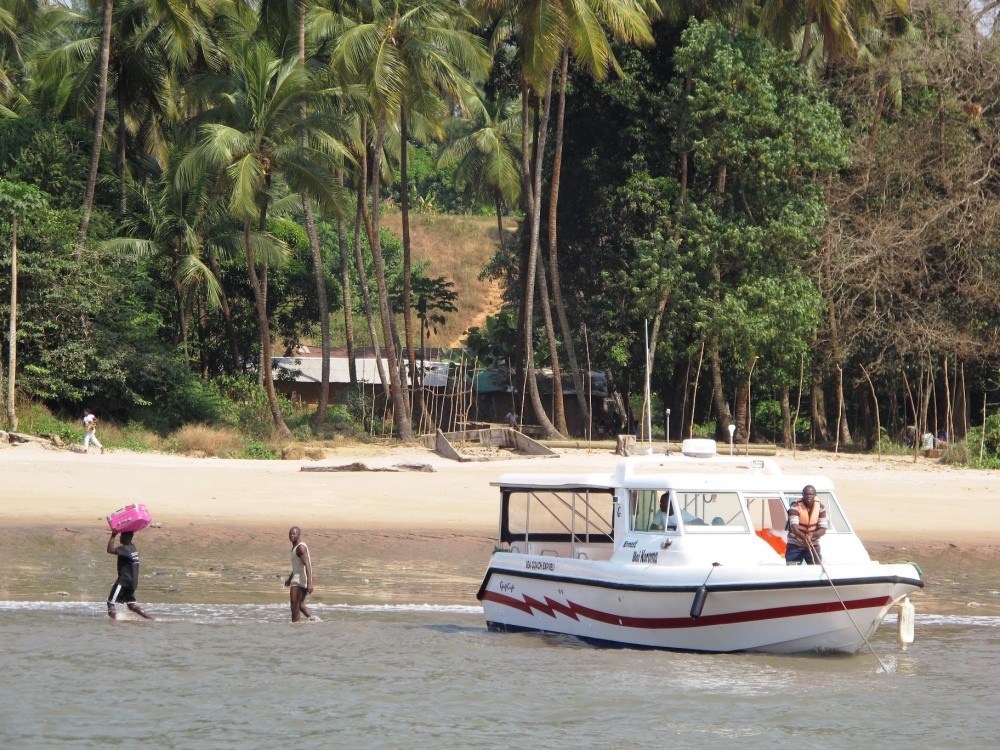

Touring 36

smartown_wave_icon_white

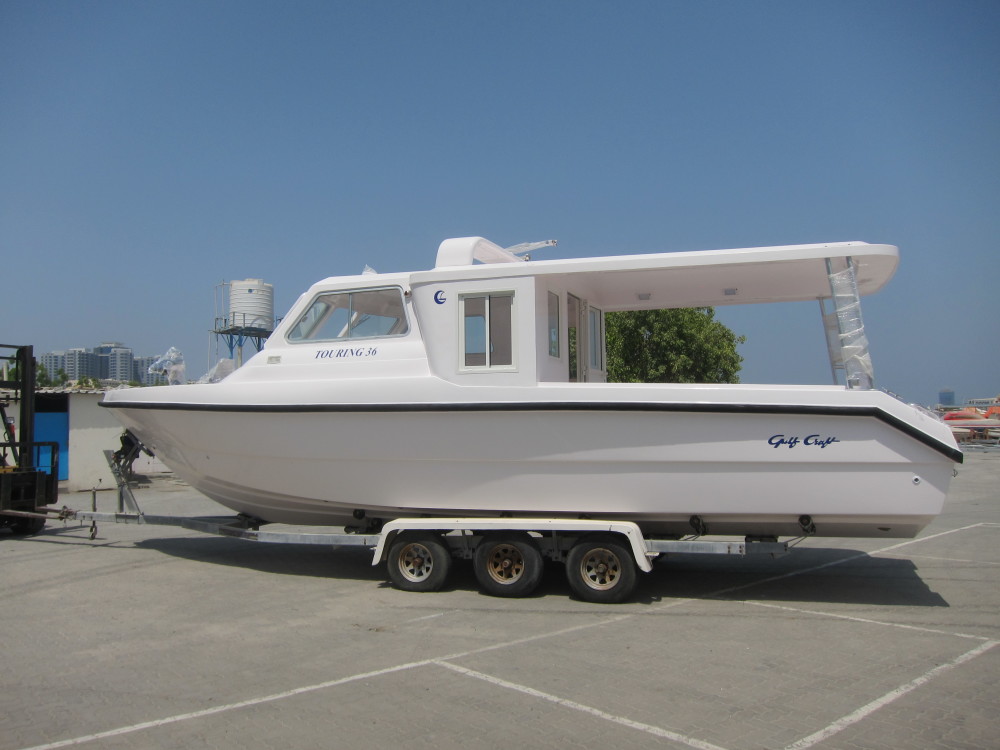

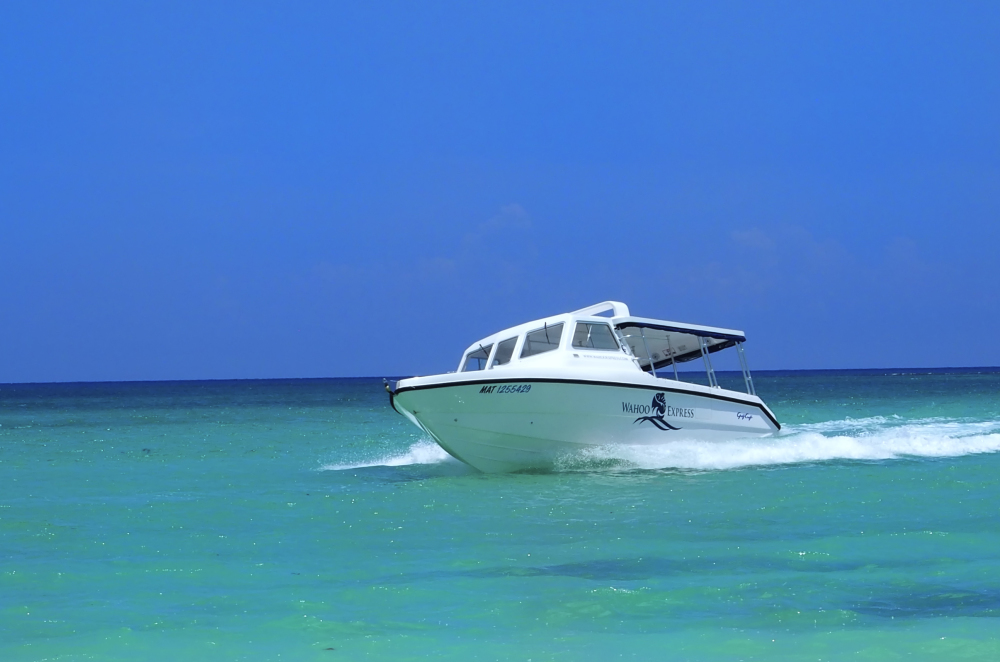

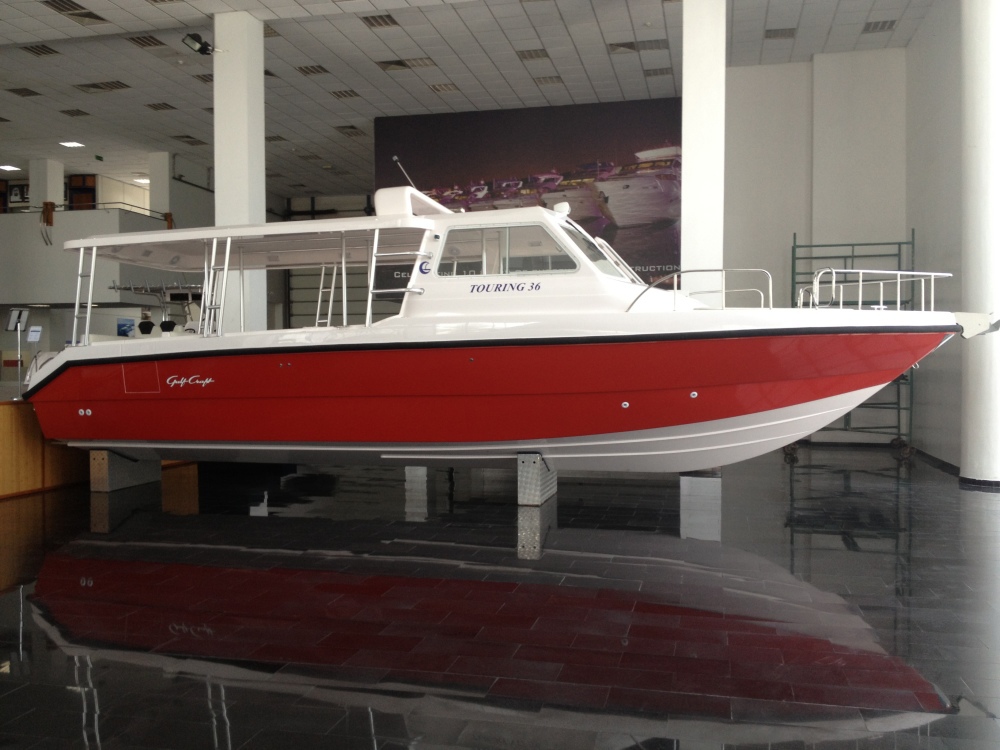

The World’s Most Popular Passenger Boat

The World’s best selling and most popular passenger boat, the Touring 36 is the vessel of choice in the water transport industry. Excellent sea-handling and performance, together with its functional, yet comfortable lay-out lies at the basis of the Touring 36 undisputed reputation.This is a great addition to your fleet of passenger boats.

  • Length: 36’
  • Beam: 9’ 10”
  • Draft: 1’ 7”
  • Weight: 10900 lbs approx. (4955 kg)
  • Fuel capacity: 200 US Gal. aluminum fuel tank
  • Water capacity: 40 US Gal. aluminum water tank
  • Standard Engines: Yamaha Outboard 2×250 HP
  • Max speed: 42 knots
  • Safety regulations: US Coast Guard Standards “MIC-XVA”
  • Seating capacity: 29 persons (23 in cabin + 6 at bow)
  • The hull and deck are made out of a single piece GRP mould, built from combination of chopped strand mat, bi-directional knit fabric and balsa core hand-laminated under controlled temperatures with Isophthalic polyester resin
  • The hull and deck exterior have got mirror glaze gel-coat finish
  • The hull is stiffened with GRP moulded frames filled with polyurethane and bonded to hull bottom
  • On the deck balsa is replaced with plywood to support deck fittings
  • All materials used in the construction are approved marine quality
  • Basic hull colour : white
  • Anodized aluminum framed windows on three sides

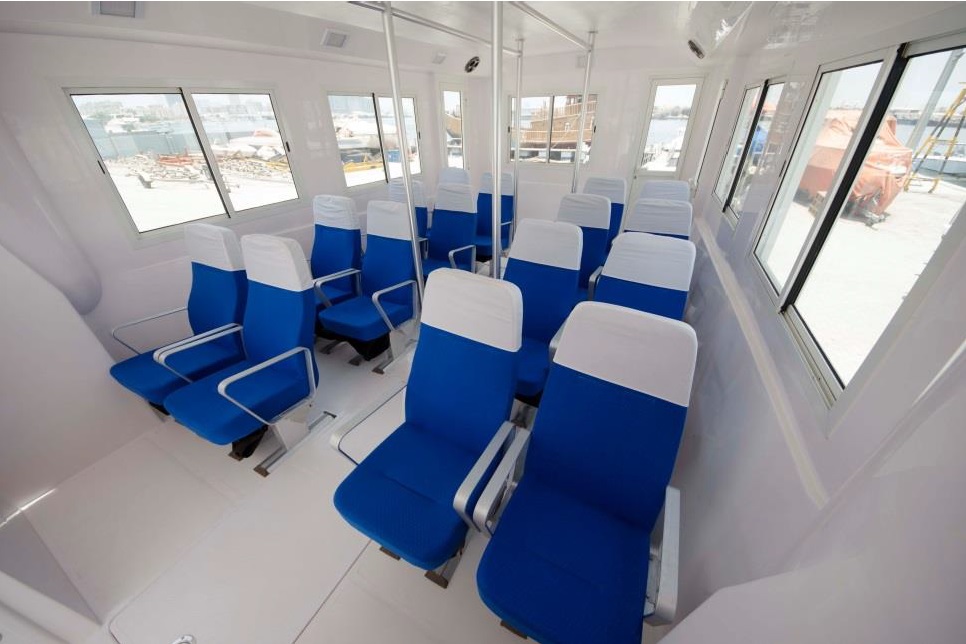

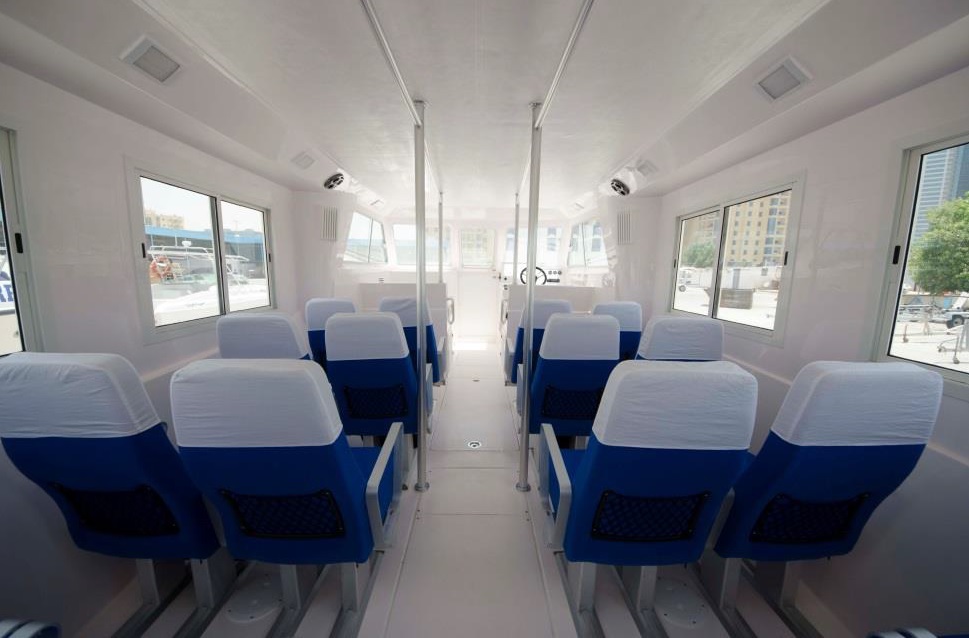

  • Built-in GRP seats
  • GRP hard top supported by stainless steel frames
  • Marine toilet – electrical

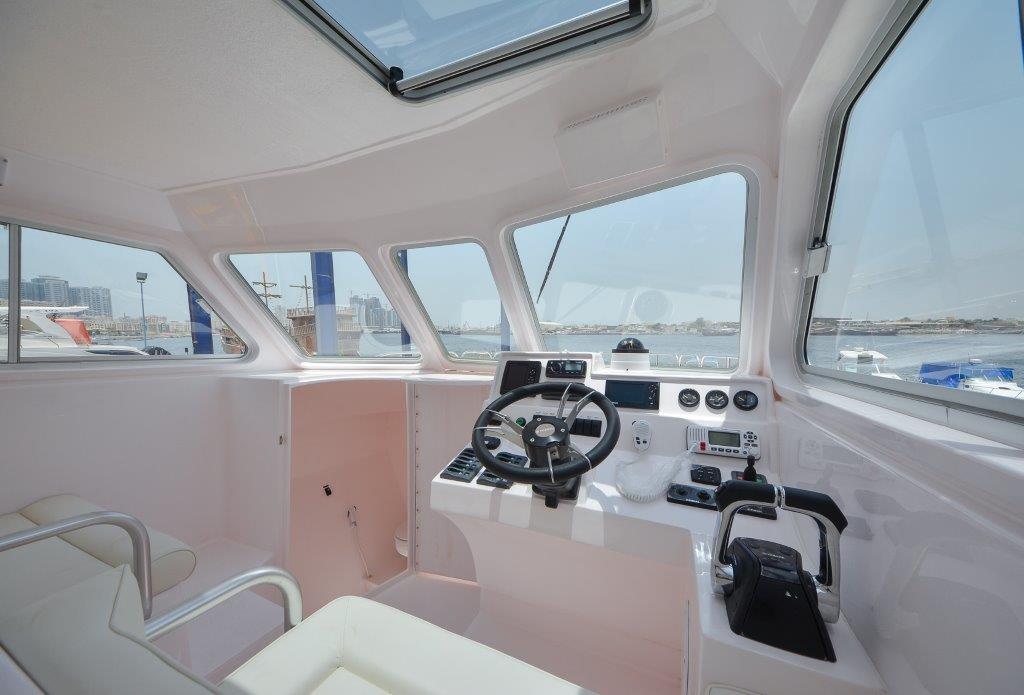

  • Hydraulic steering system
  • Running lights
  • One bilge pump with auto float switch
  • Stainless steel deck cleats
  • Stainless steel ladder
  • One manual bilge pump with handle
  • FRP Sink with water tap

Standard Layout

Many layout options available

DECK PLAN

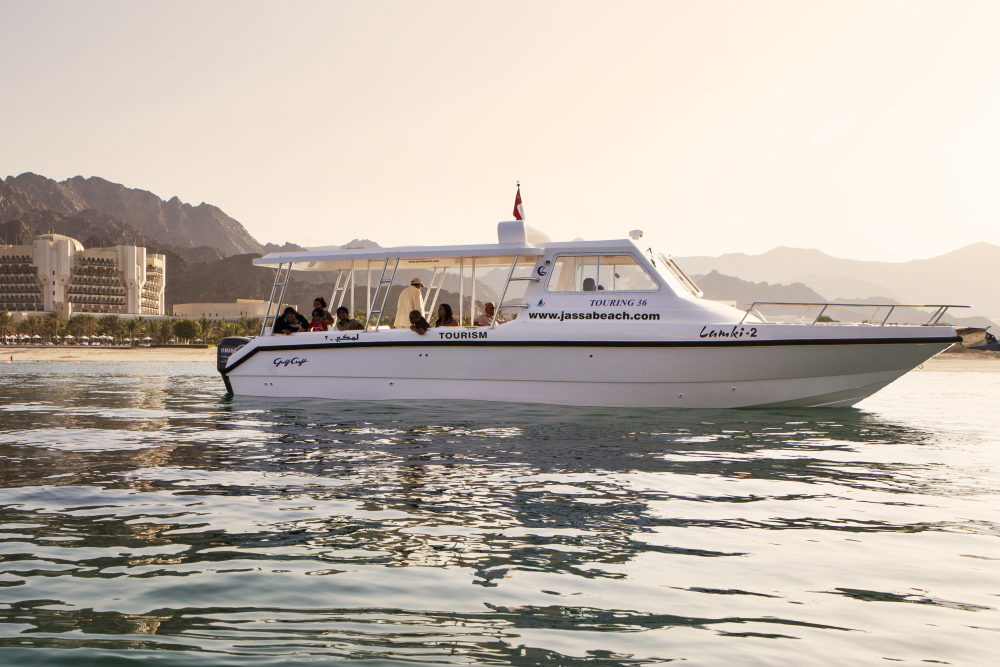

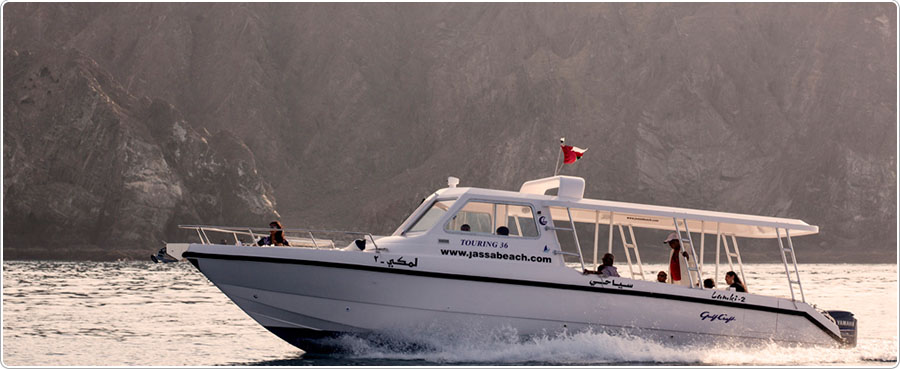

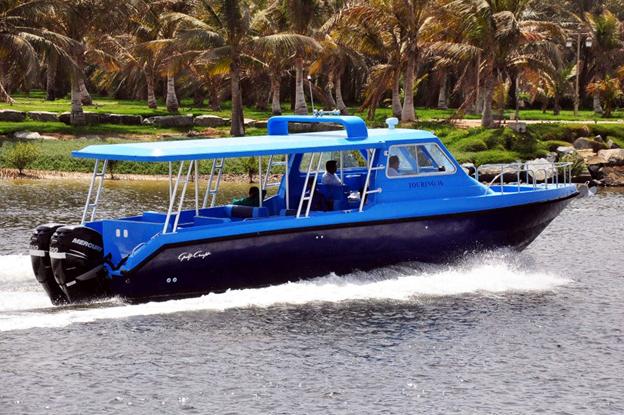

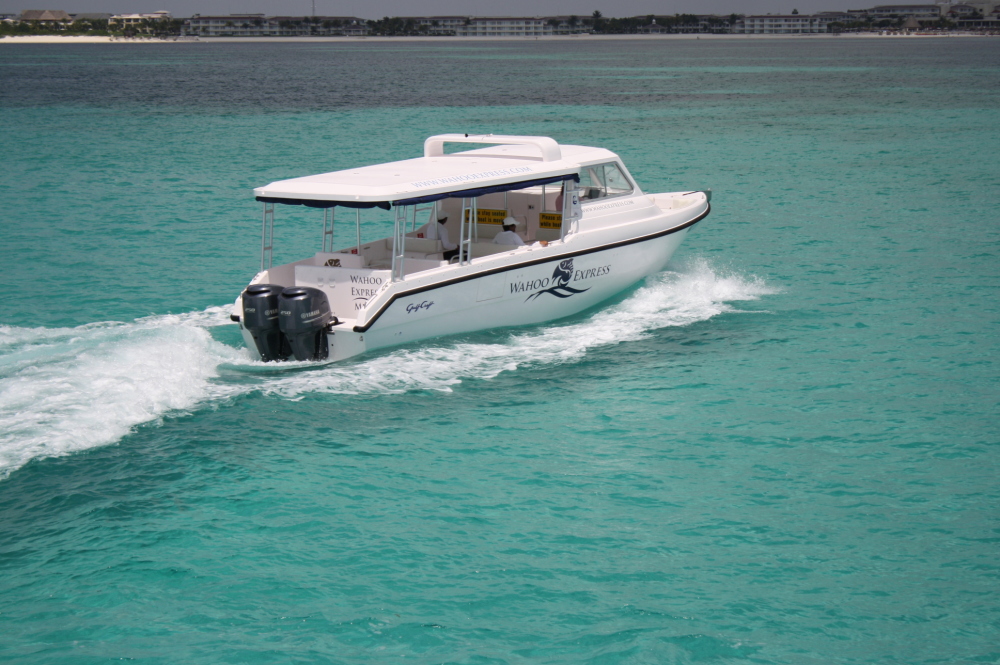

OPEN VERSION

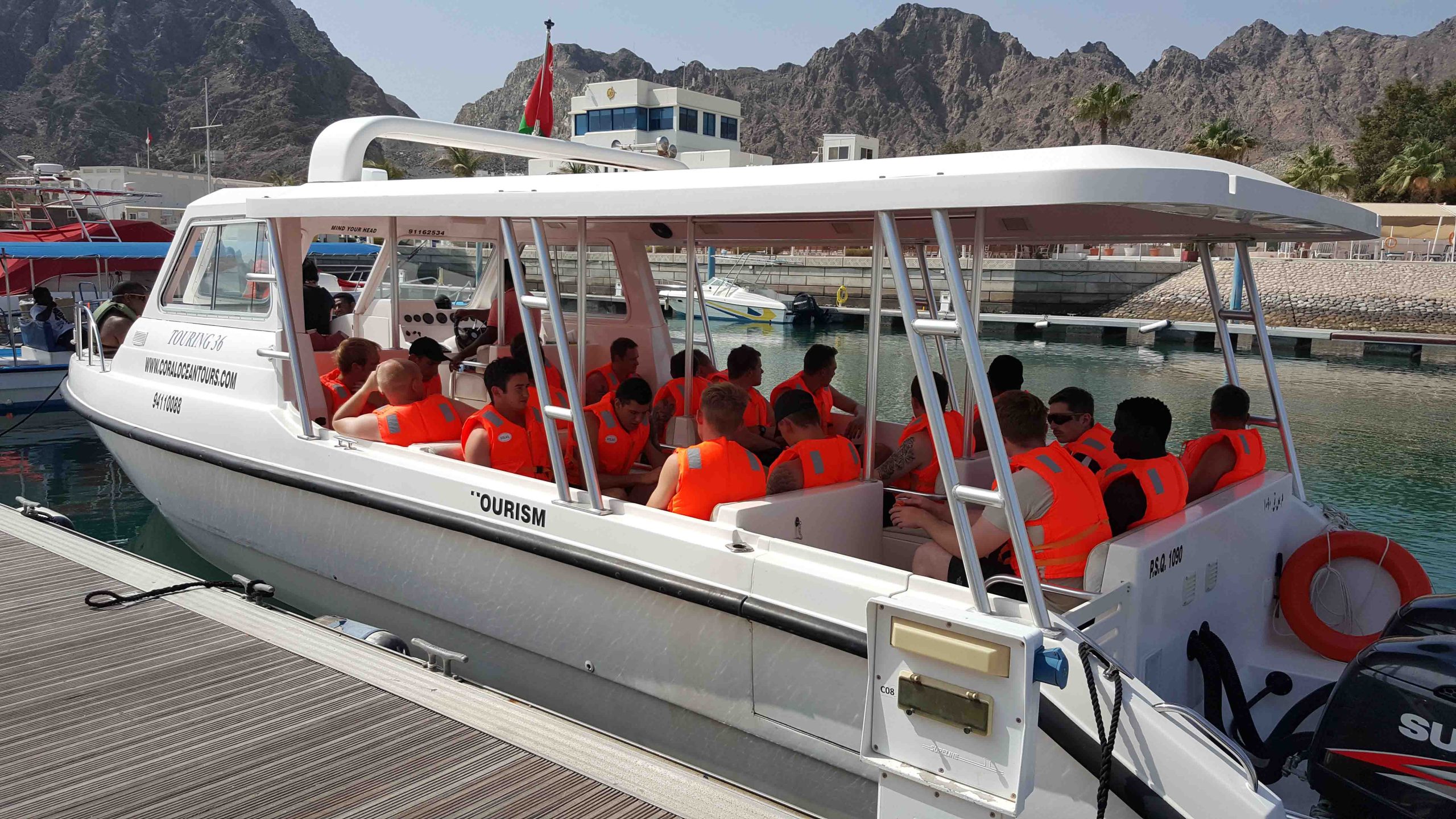

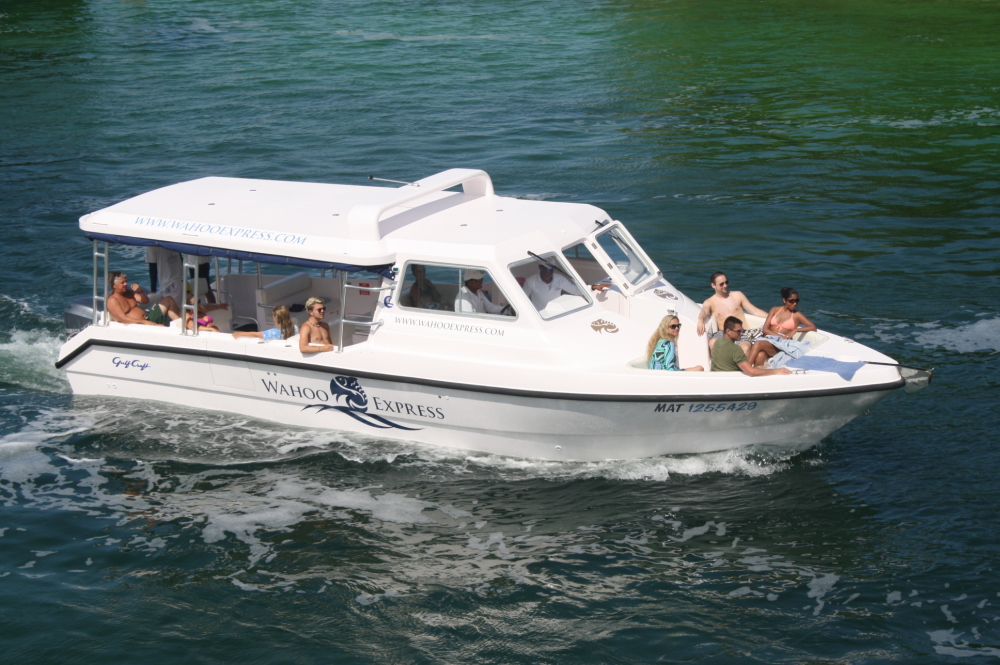

Open Version

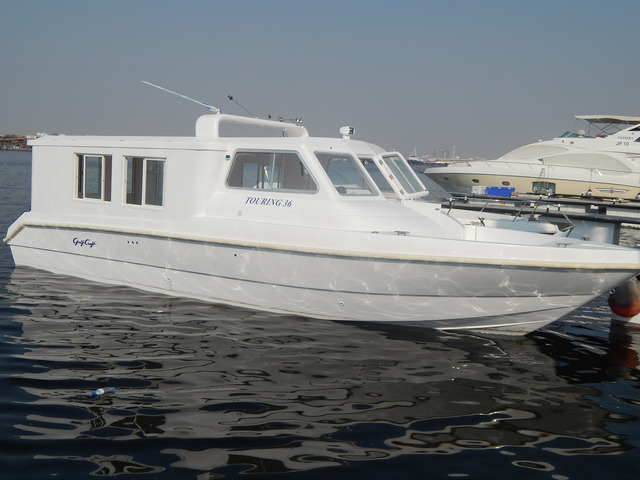

ENCLOSED VERSION

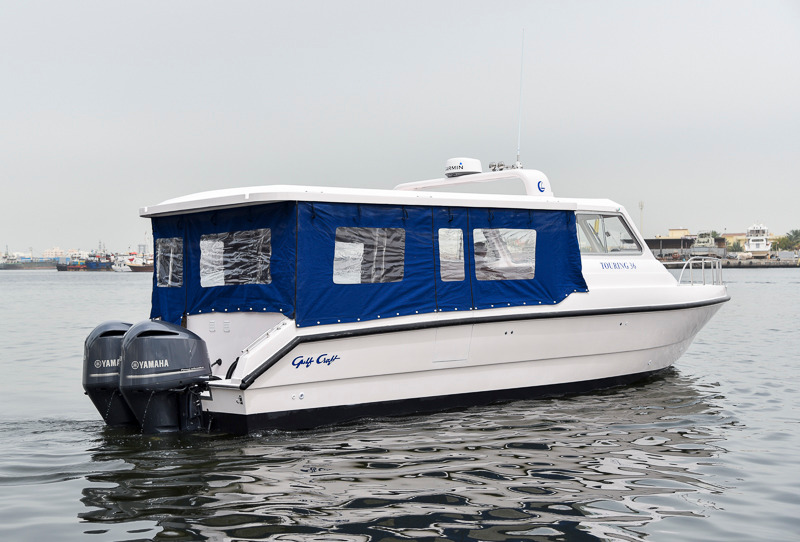

Enclosed Version

Video

youtube-video-thumbnail

Catalog

For more information, please download the catalog.

Contact Us

If you are looking for a passenger boat or a speciality craft.

Similar Passenger Boats

Transporter-32-Small

Transporter 32

1

Touring 40

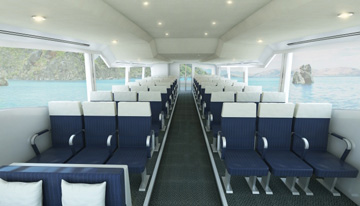

main4-e1418042337225-2
