Waveshuttle 56

Business class travel with breathtaking views

With its panoramic glass deck and its unrivaled comfort facilities, the new Waveshuttle 56 defines business class travel on water. This boat comes in Bus version for maximum passengers capacity or Lounge version for VIP guests & corporate entertainment

Specifications

  • Length overall: 59’ 05” (18.126 m)
  • Length hull: 57’ 05” (17.516 m)
  • Beam: 16’ (4.88 m)
  • Draft: 3’ 07” (1.09 m)
  • Displacement: 30 Tons approximately
  • Fuel capacity: 951 US gal (3,600 L)
  • Fresh water capacity: 211.3 US gal (800 L)
  • Black water capacity: 105.6 US gal (400 L)
  • Grey water capacity: 105.6 US gal (400 L)
  • No. of passengers (Bus Version without toilets): 56
  • No. of passengers (Bus Version with toilets): 50
  • No. of passengers (Lounge version): 30
  • No. of crew: 3
  • No. of bathrooms: 2 (Bus Version) or 1 (Lounge Version)
  • Luggage space: Dedicated lower deck for luggage
  • Engines (standard): TWIN CATERPILLAR C12 2×715 HP (28 knots)
  • Engines (optional): TWIN MTU 8V 2000 M72 2×965 HP (32 knots)

Construction

  • The hull and deck are made out of a single piece GRP mould, built from combination of chopped strand mat, bi-directional knit fabric and balsa core hand-laminated under controlled temperatures with Isophthalic polyester resin.
  • The hull and deck exterior have got mirror glaze gel-coat finish
  • The hull is stiffened with marine plywood laminated over & bonded to hull bottom
  • On the deck balsa is replaced with plywood to support deck fittings.
  • All materials used in the construction are approved marine quality.
  • Basic hull colour : white

Main Features

  • Aluminum alloy superior passenger seats (model HBI – ST-103) (Bus Version)
  • Leather side sofa seats and Coffee tables (Lounge style)
  • Chilled water air conditioning system with capacity 100,000 BTU
  • 20kW, 220Vac, 50Hz diesel marine generator
  • LED TV / DVD Home theater system
  • Boarding Cockpit Speakers (Bose)
  • Ample luggage space in water tight and nonskid flooring at lower deck
  • Power assisted electro hydraulic steering system
  • 24Vdc and 220Vac electrical system
  • 220Vac, 50Hz, Single phase shore power dock side connection
  • Trim tabs with indicators
  • VHF Radio
  • Electric quiet flush toilets
  • Search light
  • Navigation system
  • Water closet
  • Stainless steel railings
  • Stainless steel framed Saloon door
  • Fixed fire extinguishing system in engine room / main helm
  • Full length transom platform with tender storage facilities
  • Anchor 35kg with chain length 50m, 10mm diameter
  • Electric anchor winch with fore deck and helm controls
  • 6 x Mooring cleats, two on forward, two on aft cockpit and two on amidships
  • Windscreen wipers with fresh water wash system
  • Tinted panoramic side windows
  • Life jackets Nos 66 (Bus version) or Nos 40 (Lounge version)
  • Bow thruster 10 hp, 24Vdc
  • Stern thruster 10 hp, 24Vdc
  • Architectural lighting
  • Fitted carpet

Optional Equipment:

  • Autopilot
  • Water maker 140L/h, 220-240V, 50Hz
  • Life raft – 4 Nos (Bus version) or 2 Nos. (Lounge version)
  • Teak decking on Swim platform and Boarding Cockpit
  • Ice maker
  • Electric water heater 50L capacity
  • Hot and cold water transom shower
  • Galley (standard on Lounge version)
  • Fridge (standard on Lounge version)
  • Microwave (standard on Lounge version)
  • Wash Basin (standard on Lounge version)
  • Satellite receiver for TV (Humax)
  • Crew cabin with two sleeping beds
  • Antifouling
  • Flag Pole

BUILD THE WAVESHUTTLE 56 YOUR WAY !

This boat can be trimmed down for commercial use
or be fitted with dozens of luxury treats to satisfy the ambitions
of the most demanding owners.

Deck layout options are left to your imagination or we can help you chose one.

The Waveshuttle 56 can be equipped with different inboard engines.

CALL US NOW TO DISCUSS YOUR REQUIREMENTS

General Arrangements

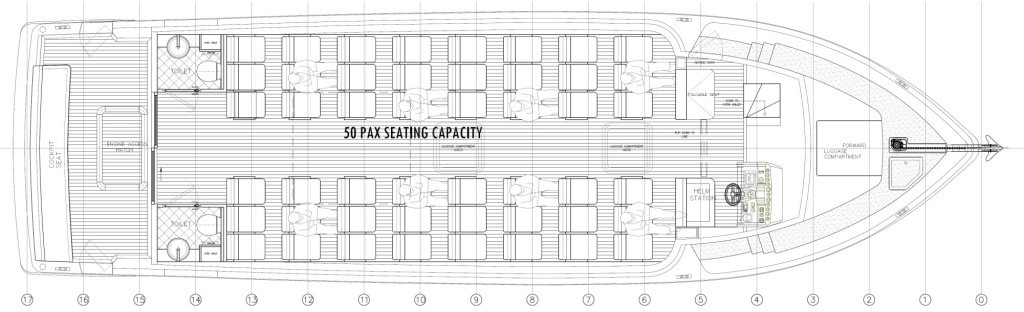

Waveshuttle 56 Bus Version with toilets, luggage compartment and crew cabin

Waveshuttle 56 with 50 Pax Capacity 1

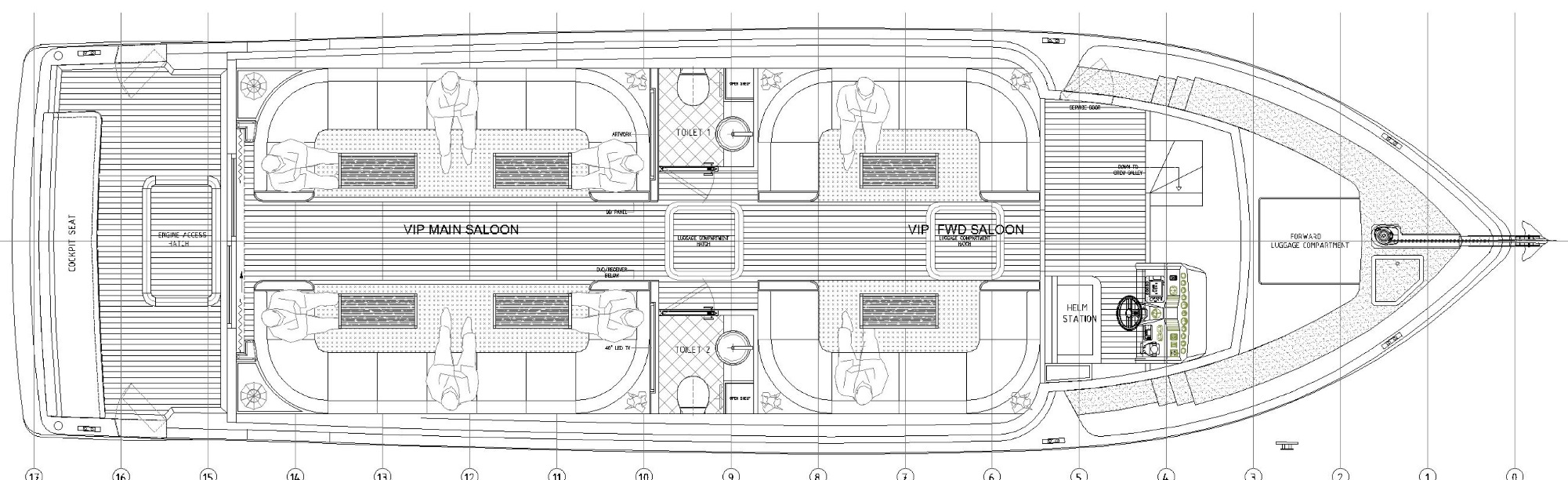

Waveshuttle 56 Lounge Version

Waveshuttle 56 VIP Lounge Version 1

If you are looking for a passenger boat or a speciality craft.

For more information, please download the catalog.
