The first water taxi for sale made specifically for Africa

We spent three years roaming around Africa’s waterways learning how to design the perfect passenger boat. JAJI 31 is the fruit of our extensive knowledge of the African water transport industry. Built in Dubai it is the first water taxi in the World that is designed specifically for the African market. We named this boat after Africa’s water transport magnate Captain Olusegun Jaji hoping it will reach similar success and recognition as the man behind the name.

Especificações

  • Length: 31′
  • Beam: 8’ 08”
  • Weight: 2,800 kg approx.
  • Fuel capacity: 750 liter.
  • Standard Engines: Yamaha Outboard 2x200 HP
  • Max speed: 40 knots
  • Design conformity: CE
  • Seating capacity: 29 persons (26 passengers + 2 crew + 1 pilot)

Construção

  • O casco e o convés são feitos de um molde GRP de peça única, construído a partir da combinação de esteira de fios picados, tecido de malha bidirecional e núcleo de balsa laminado à mão sob temperaturas controladas com resina de poliéster isoftálica
  • O exterior do casco e do convés tem acabamento em gel-coat espelhado
  • O casco é reforçado com estruturas moldadas em GRP preenchidas com poliuretano e coladas ao fundo do casco
  • No convés a balsa é substituída por compensado para suportar os encaixes do convés
  • Todos os materiais utilizados na construção são de qualidade marítima aprovada
  • Basic hull colour : Light Blue (other colors available)

CONFIGURATIONS

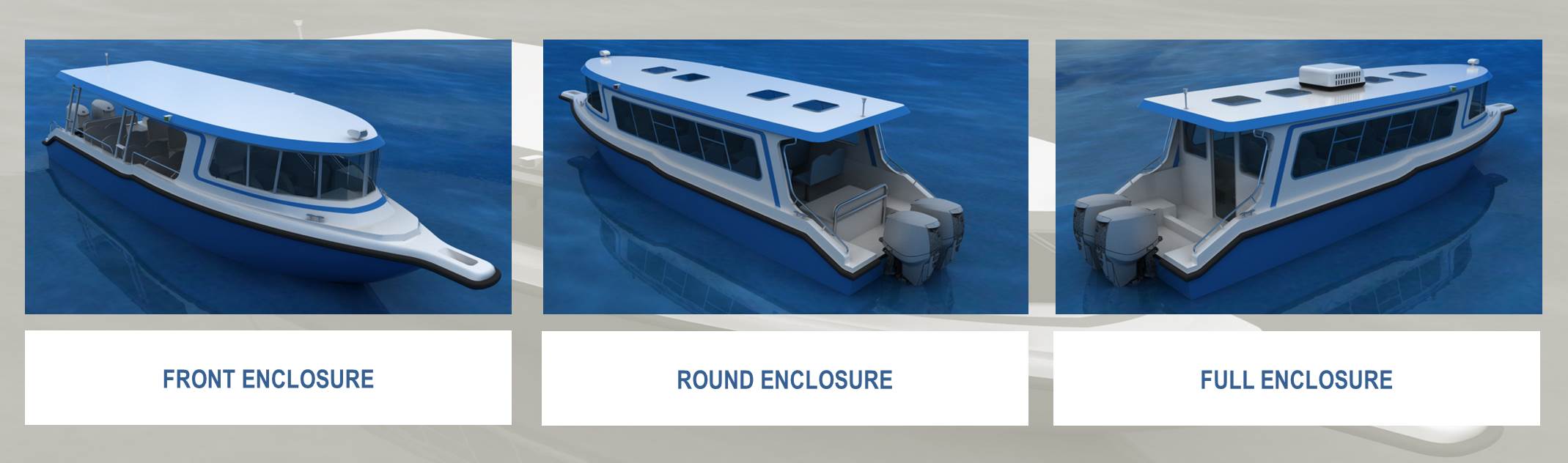

JAJI 31 comes in three different configurations. Front enclosure, round enclosure and full enclosure

LAYOUT

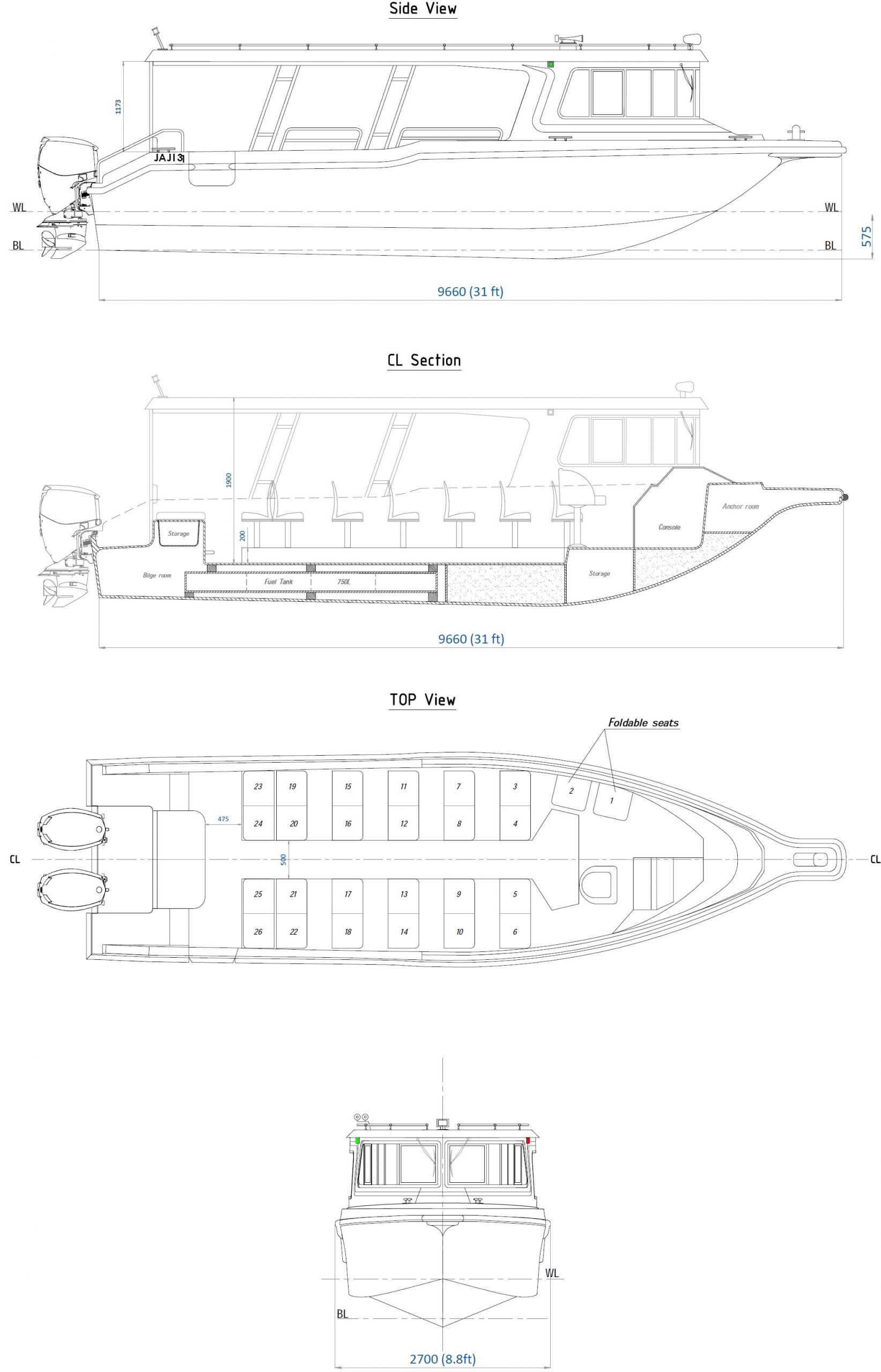

JAJI-31-drawings

GEL COAT COLORS

six gel coat choices for JAJI 31 water taxi

Características padrão

  • GRP/ EPOXY built- in fuel tanks
  • Tank connection and filling kits
  • Bilge pump with auto-switch system
  • Battery bank and battery switch
  • Hydraulic Steering System
  • PVC Upholstered Cushions
  • Heavy duty rubber fender
  • Antislip floor finish
  • Deck drains with covers
  • Navigation lights x 2
  • Anchor light
  • Fuel gauge
  • Voltmeter gauge
  • Steering Wheel
  • Compass 105
  • 12V power plug
  • Console SS railing
  • SS Cleats x 6
  • GRP Front drivers console
  • Admiral Pilot seats
  • SS Back bench backrest
  • Fuel filters x 2 for engine fuel system
  • Fuel connections
  • GRP Cockpit front (bow) enclosure
  • Front windows AL powder coated frame
  • Front windows glass finishing
  • Front windows wipers system x 3
  • Front rotating search light
  • Horn twin Trumpet
  • Anchor with chain and rope
  • LED Deck lights x 10
  • SS Bollard at the front
  • Aluminum powder coated columns (roof support)x 6
  • Plastic bus seats with cushion and aluminum frame x 24
  • Foldable aluminum seats with cushion x 2
  • SS Railings on the gunwale x 6
  • LED Cabin lights x 3
  • Trim Tabs
