Ferry 75

smartown_wave_icon_white

100 passengers ferry with economy and first class sections

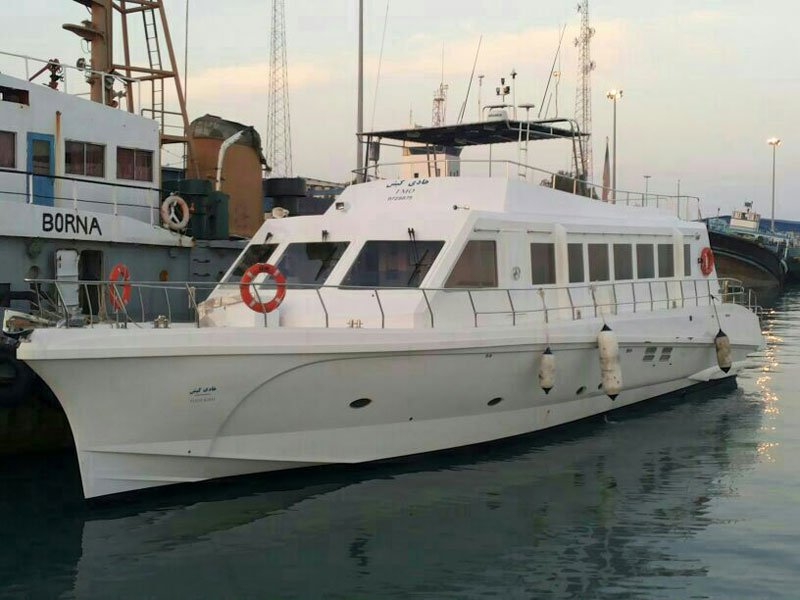

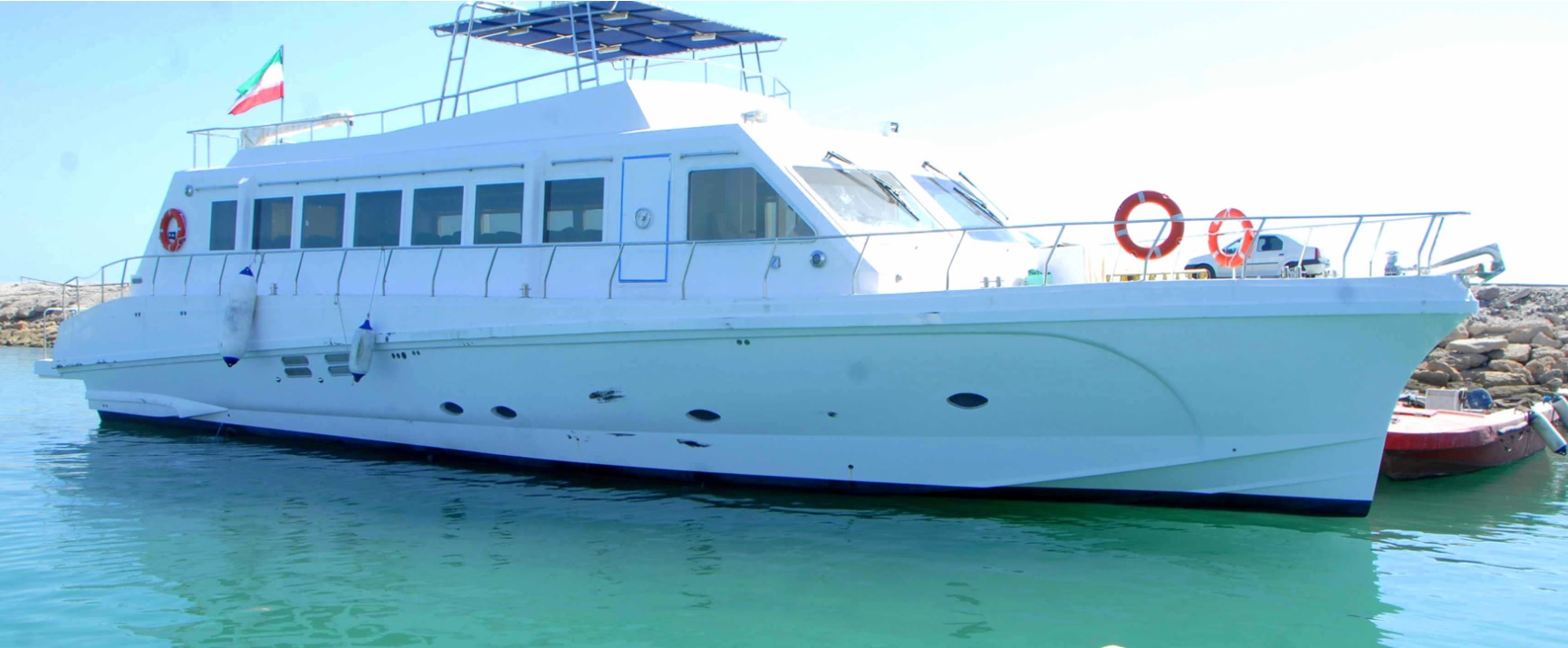

The Ferry 75 is a sea going ferry with a seating capacity for 100 passengers divided into two separate air conditioned sections. An economy class section with high quality comfortable armchair seats for 88 passengers and a luxury lounge for 12 VIP passengers. The boat comes with a crew cabin with 4 bunk beds.

Caractéristiques

  • Length Overall : 22.9 mtr
  • Length Waterline : 20.0 mtr
  • Beam : 6.5 mtr
  • Hull Depth : 2.9 mtr
  • Draft : 0.8 mtr
  • Displacement : 45 ton
  • Hull and deck materials : GRP
  • Fuel capacity : 2 x 3,000 liter aluminum fuel tank
  • Water capacity : 1 x 500 liter aluminum water tank
  • Standard Engines : Yanmar 2x830 HP inboard diesel
  • Drive : Conventional direct shaft
  • Passengers capacity : 100 passengers (88 coach class + 12 VIP class)

Construction

  • La coque et le pont sont fabriqués à partir d'un moule GRP monobloc, construit à partir d'une combinaison de tapis à fils coupés, de tissu tricoté bidirectionnel et d'âme en balsa laminé à la main sous des températures contrôlées avec de la résine polyester isophtalique.
  • L'extérieur de la coque et du pont a une finition gel-coat à glaçure miroir.
  • The hull is stiffened with GRP molded frames filled with polyurethane and bonded to hull bottom
  • Sur le pont, le balsa est remplacé par du contreplaqué pour supporter l'accastillage.
  • Tous les matériaux utilisés dans la construction sont de qualité marine approuvée
  • Couleur coque standard : blanc

Caractéristiques standards

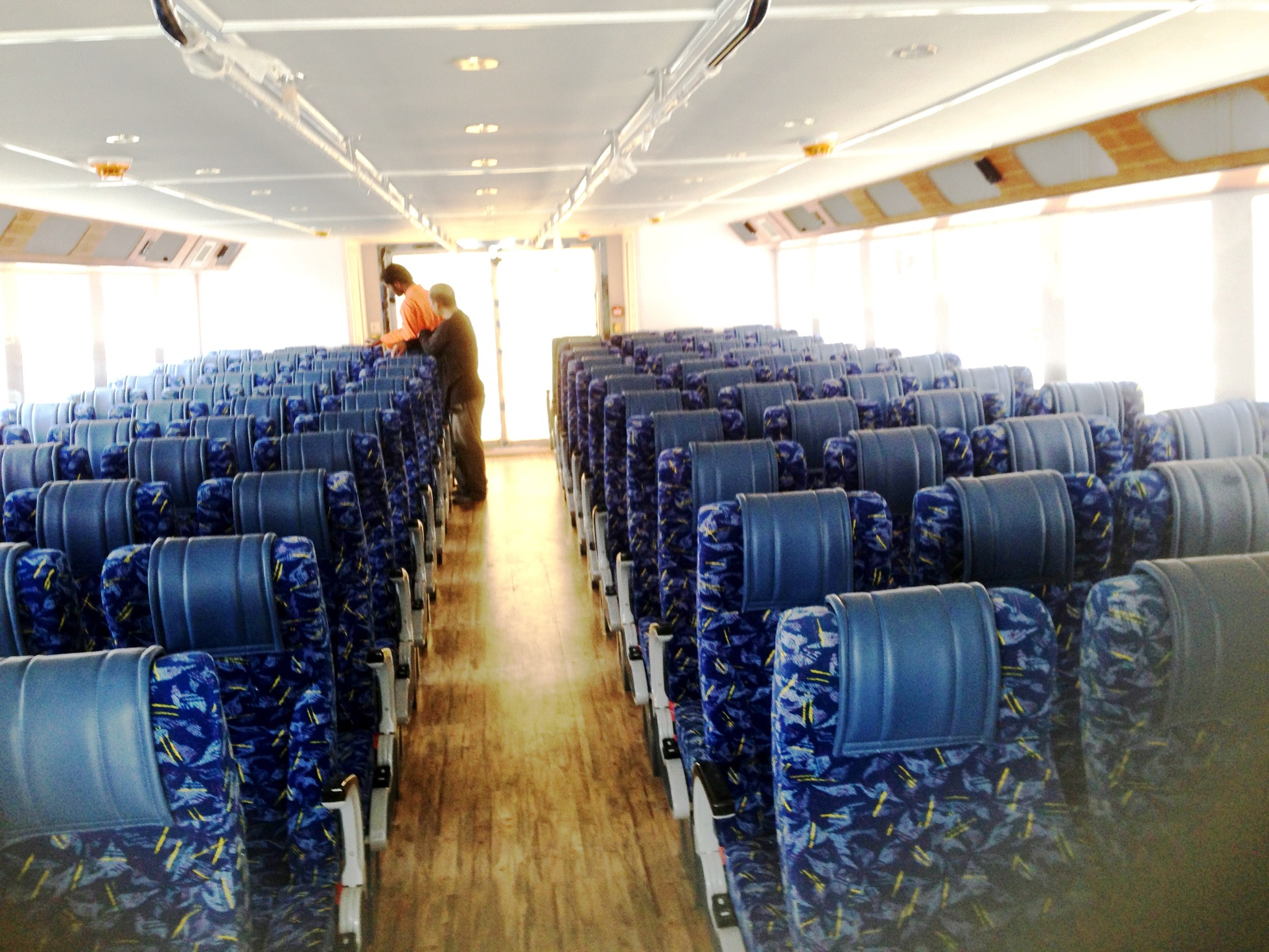

  • Temperature controlled FRP main cabin covered by tempered marine glass with luxury seats for 88 passengers.
  • Separate luggage room at aft for 100 large size bags.
  • One separate VIP luxury lounge cabin with leather rounded sofa seat for 12 persons with LCD screen, kitchen galley with fridge and oven, dedicated toilet cabinet with sink.
  • One crew room on the V-Berth with 4 bunk beds and one toilet with shower.
  • Two toilet cabinets with sink on the back side of the main cabin.
  • Air condition system 70,000 BTU.
  • Marine Generators 2 nos x 25 KW with 1 AC/DC Switchboard panel on the dash board.
  • Electrical Windlass 1,700 watts with Anchor and 100Mtr Galvanized Chain.
  • Liferafts for 100 passengers

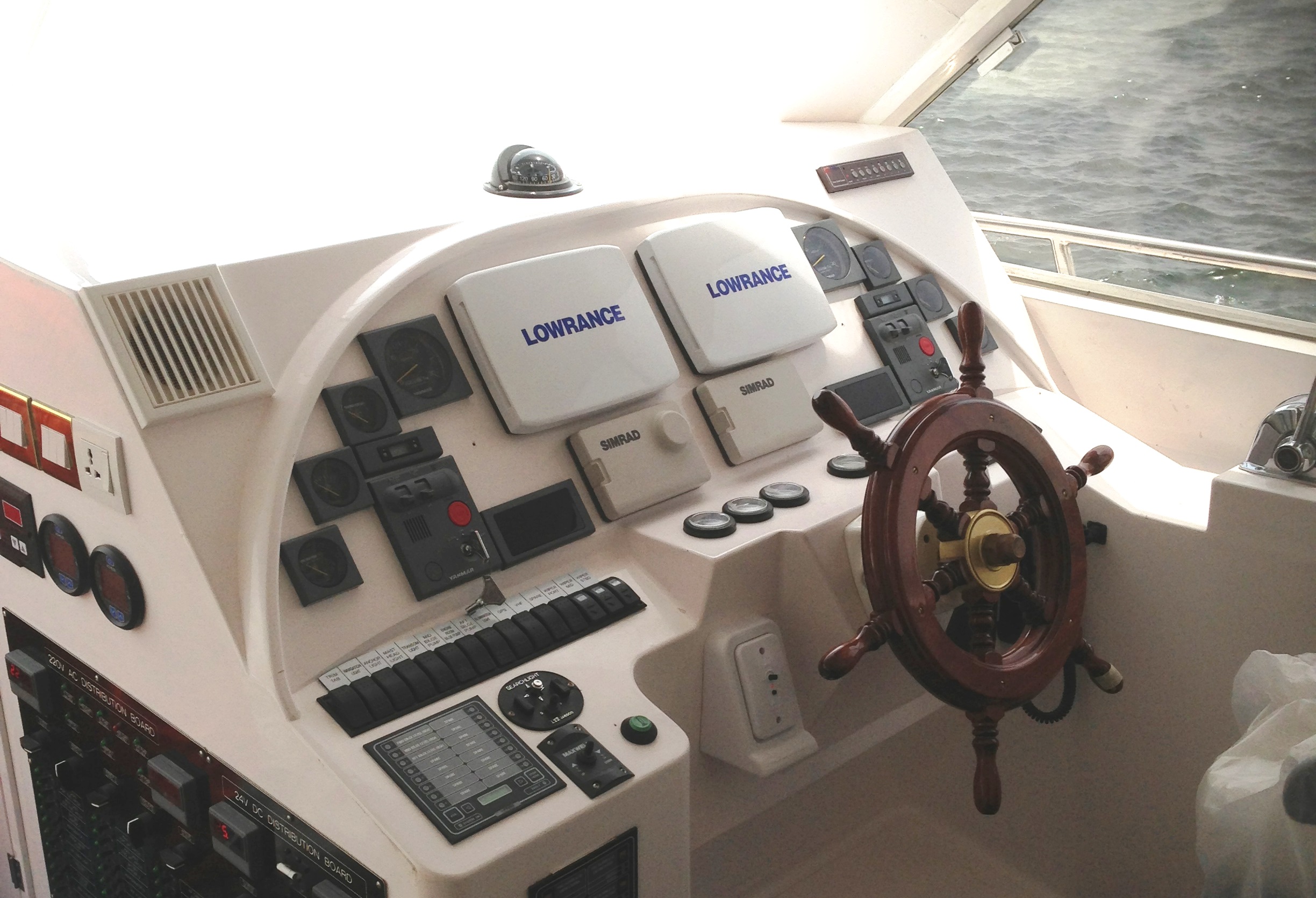

  • Standard Navigation Equipment (GPS, Radar and VHF Radio)
  • Non-skid flooring
  • Marine grade horns
  • Navigation lights
  • Remote controlled search light
  • Boussole
  • Bollards x 8 nos
  • Windscreen wipers x 2 nos
  • Bow railing in stainless steel.
  • Shore Power socket

Caractéristiques optionnelles

  • Flybridge seating with aluminum T-Top canopy.
  • Electric winch.
  • Bow thruster
  • Stern thruster
  • Ice Maker Marine 220V 50/60 Hz
  • Water Maker (140 liter/hour)
  • Camera Monitoring System
  • Thuraya Maritime Satellite Phone / Fax
  • Night Vision Camera FLIR (M-Series M-324XP

Dispositions générales

Passenger-boat-model-Ferry-75-GA-887x1024

Photo Gallery

bouton-contact

Si vous recherchez un bateau à passagers ou une embarcation spécialisée.

Catalogue

Pour plus d'informations, veuillez télécharger le catalogue.
